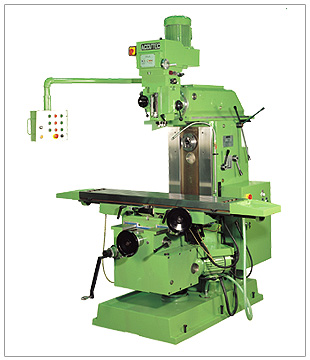

  £»HORIZONTAL & VERTICAL UNIVERSAL APPLICATIONS


  STANDARD FEATURES:

Rapid traverse on "X", "Y" & "Z" axis.
Via inverter variable feeding on "X", "Y" & "Z" axis.
High quality meehanite casting body GC-45/DIN-40.
All gears & shafts are hardened & ground.
Table swivels ¡Ó45¢X degrees left & right.
All "X", "Y" & "Z" wider square slide ways & table
  surface are hardened & ground.
Motorized ARM/RAM elec. Motor is 3.75KW (5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
All square slide way & dovetail way are bigger &
  stronger.
Cast iron is either ASTM No. 40/meehanite GC-45 or
  DIN GG-40.

......................................................................................................................................................................................................................
SPECIFICATION:
Technical Specifications MODEL 2500QM
TABLE
Table area
Number of "T" shaped slots
Distance between "T" shaped slots
Rotary movement of table in both direction
 1500x350mm (59x13.7")
5-16H7
60mm
45¢X
TRAVERSE
Automatic Longitudinal
Automatic cross
Automatic Vertical
Available distance from spindle to overarm		 1150mm (46")
400mm (15 3/4")
500mm (20")
155mm (6")
SPINDLE (horizontal)
Housing of the taper spindle
Diameter of the main Shaft nose
Milling arbor diameter (*)
Number of speeds of the spindle (R.P.M.)		 ISO-40/50
88.88mm
27mm or (1")
12(40-1800) 50HZ
FEEDS
Longitudinal and cross feeds
Vertical feed		 10-1208mm (0.4-47")
5-604mm (0.2-23")
RAPID TRAVERSE
Longitudinal and cross
Vertical		 1208mm (47")/min (60HZ)
604mm (23")/min
PUISSANCE
V-Belts
Main motor HP
Feed motor HP		 4
7.5
2.5
COOLING
Cooling-pump HP		 1/8
MOTORIZED OVERARM
Housing of the taper spindle
Number of speeds
Speed range (R.P.M)
Power HP		 ISO-40
¡Ð
Variable Speed (70-3600)
5
WEIGHT
Maximum weight on table
Net weight
Gross weight with seapacking case
Cubical measure of packing		 600kg (1320 lb)
3200kg (7040 lb)
3400kg (7480 lb)
184x227x227cm (70x89x88")


STANDARD ACCESSORIES:
27mm or 1" long horizontal ISO#40 milling arbor.
Horizontal & vertical manual draw-bars.
Coolant pump & coolant system.
Tool box and services tools.		 OPTIONAL ACCESSORIES:
AC auto for over - arm moving device is available.
Ball screws for "X", "Y" axis.
Auto ways lubrication unit.
Chip tray.
Universal dividing head, complete with 3 JAW chuck.
Horizontal & vertical rotary table.
Hydraulic clamping vise 6" or 8".
Power milling vise 6" or 8".
Clamping kit.
Pneumatic power draw bar.
ISO#50 spindle taper.
