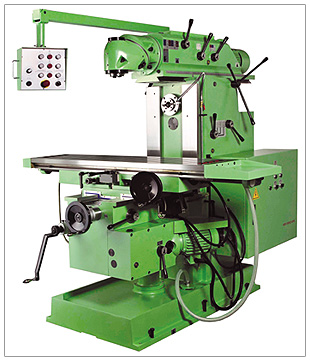

  £»UNIVERSAL MILLING MACHINE


  STANDARD FEATURES:

Rapid traverse on "X", "Y" & "Z" axis.
Via inverter variable feeding on "X", "Y" & "Z" axis.
High quality meehanite casting body GC-45/DIN-40.
All gears & shafts are hardened & ground.
Table swivels ¡Ó45¢X degrees left & right.
All "X", "Y" & "Z" wider square slide ways & table
  surface are hardened & ground.
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
All square slide way & dovetail way are bigger &
  stronger.
Cast iron is either ASTM No. 40/meehanite GC-45 or
  DIN GG-40.

......................................................................................................................................................................................................................
SPECIFICATION:
Technical Specifications MODEL 2500UM
TABLE
Table area
Number of "T" shaped slots
Distance between "T" shaped slots
Rotary movement of table in both direction
 1500x350mm (59x13.7")
5-16H7
60mm
45¢X
TRAVERSE
Automatic Longitudinal
Automatic cross
Automatic Vertical
Available distance from spindle to overarm		 1150mm (46")
400mm (15 3/4")
500mm (20")
155mm (6")
SPINDLE (horizontal)
Housing of the taper spindle
Diameter of the main Shaft nose
Milling arbor diameter (*)
Number of speeds of the spindle (R.P.M.)		 ISO-40/50
88.88-128.57mm
27mm or (1")
12(40-1800) 50HZ
FEEDS
Longitudinal and cross feeds
Vertical feed		 10-1208mm (0.4-47")
5-604mm (0.2-23")
RAPID TRAVERSE
Longitudinal and cross
Vertical		 1208mm (47")/min (60HZ)
604mm (23")/min
PUISSANCE
V-Belts
Main motor HP
Feed motor HP		 4
7.5
2.5
COOLING
Cooling-pump HP		 1/8 (0.10)
MOTORIZED OVERARM
Housing of the taper spindle
Number of speeds
Speed range (R.P.M)
Power HP		 ISO-40/50
12
(35-1600) 50HZ
5.5
WEIGHT
Maximum weight on table
Net weight
Gross weight with seapacking case
Cubical measure of packing		 600kg (1320 lb)
3200kg (7040 lb)
3400kg (7480 lb)
184x227x227cm (70x89x88")


STANDARD ACCESSORIES:
27mm or 1" long horizontal ISO#40 milling arbor.
Horizontal & vertical manual draw-bars.
Coolant pump & coolant system.
Tool box and services tools.		 OPTIONAL ACCESSORIES:
AC auto for over - arm moving device is available.
Ball screws for "X", "Y" axis.
Auto ways lubrication unit.
Chip tray.
Universal dividing head, complete with 3 JAW chuck.
Horizontal & vertical rotary table.
Hydraulic clamping vise 6" or 8".
Power milling vise 6" or 8".
Clamping kit.
Pneumatic power draw bar.
ISO#50 spindle taper.
